SIM Icons and what they mean

Created by Bettina Kabutz, Modified on Thu, 9 Oct at 7:20 PM by Bettina Kabutz

Depending on your CollecTin More model the symbols indicating if the unit detects your SIM and if the SIM is active are slightly different. Below indicators that explain each of these.

	Model A13
SIM Active	SIM Inactive / Faulty	SIM Undetected / Absent
Click / Tap image to enlarge	Click / Tap image to enlarge	Click / Tap image to enlarge

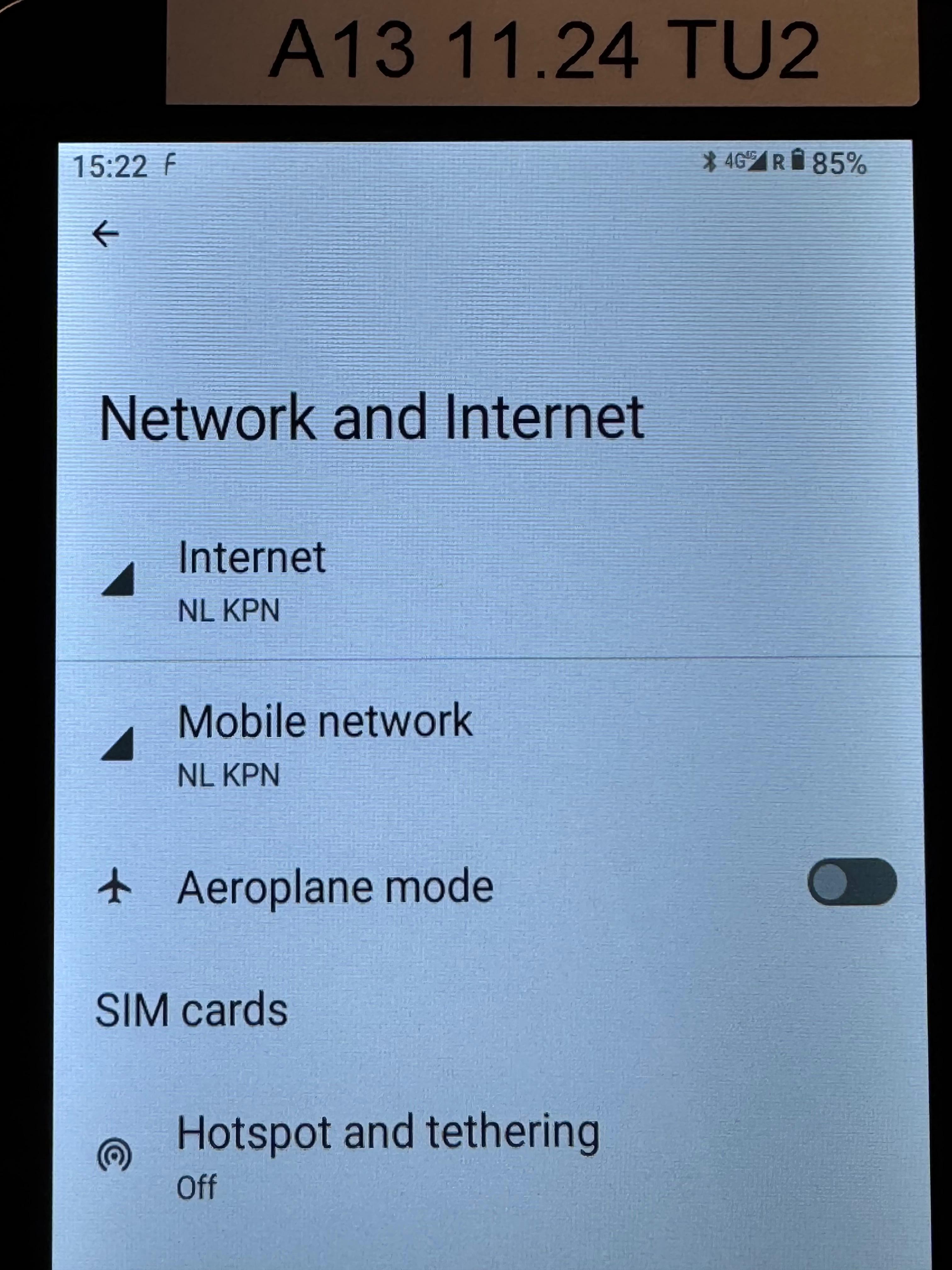

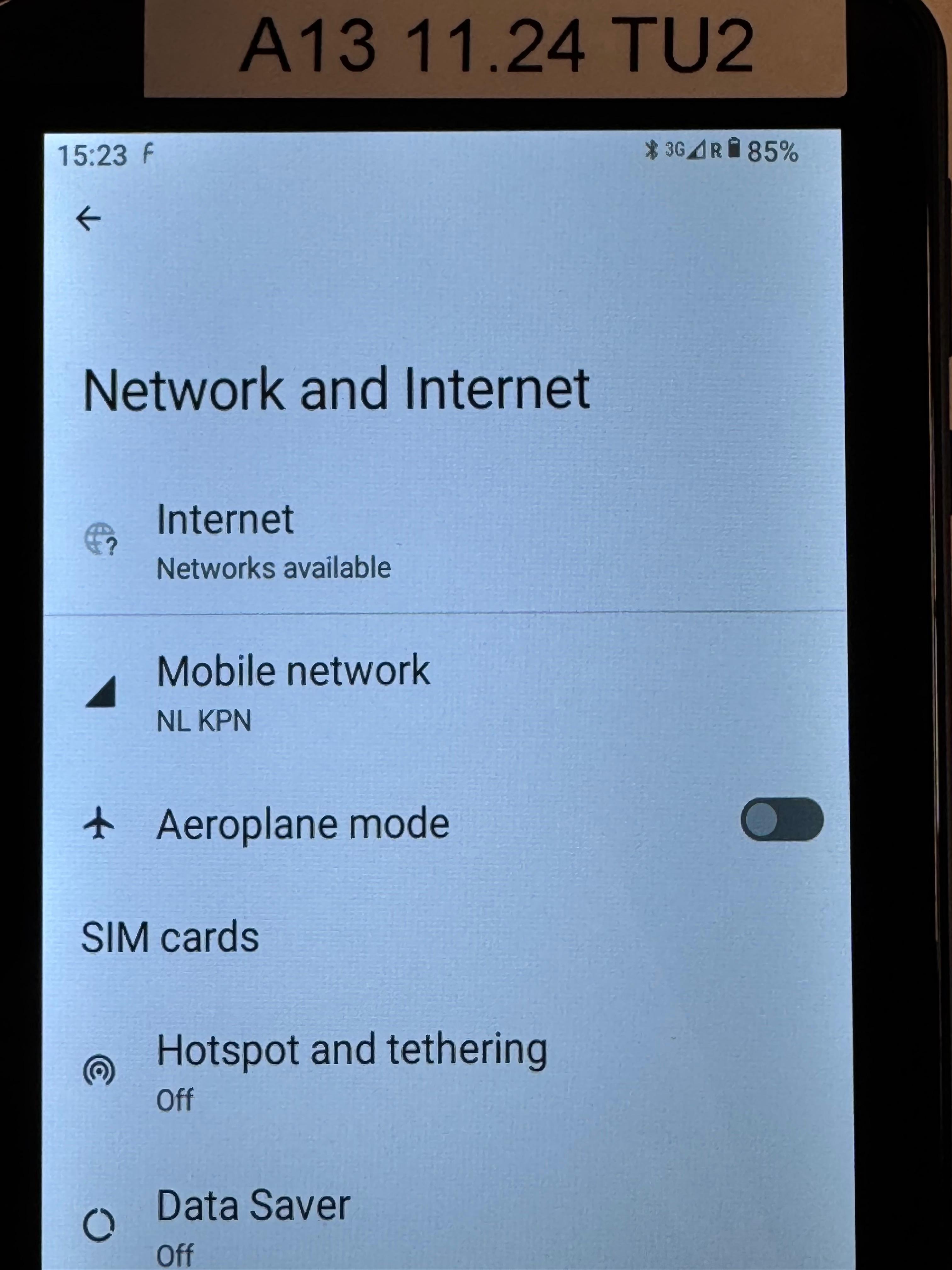

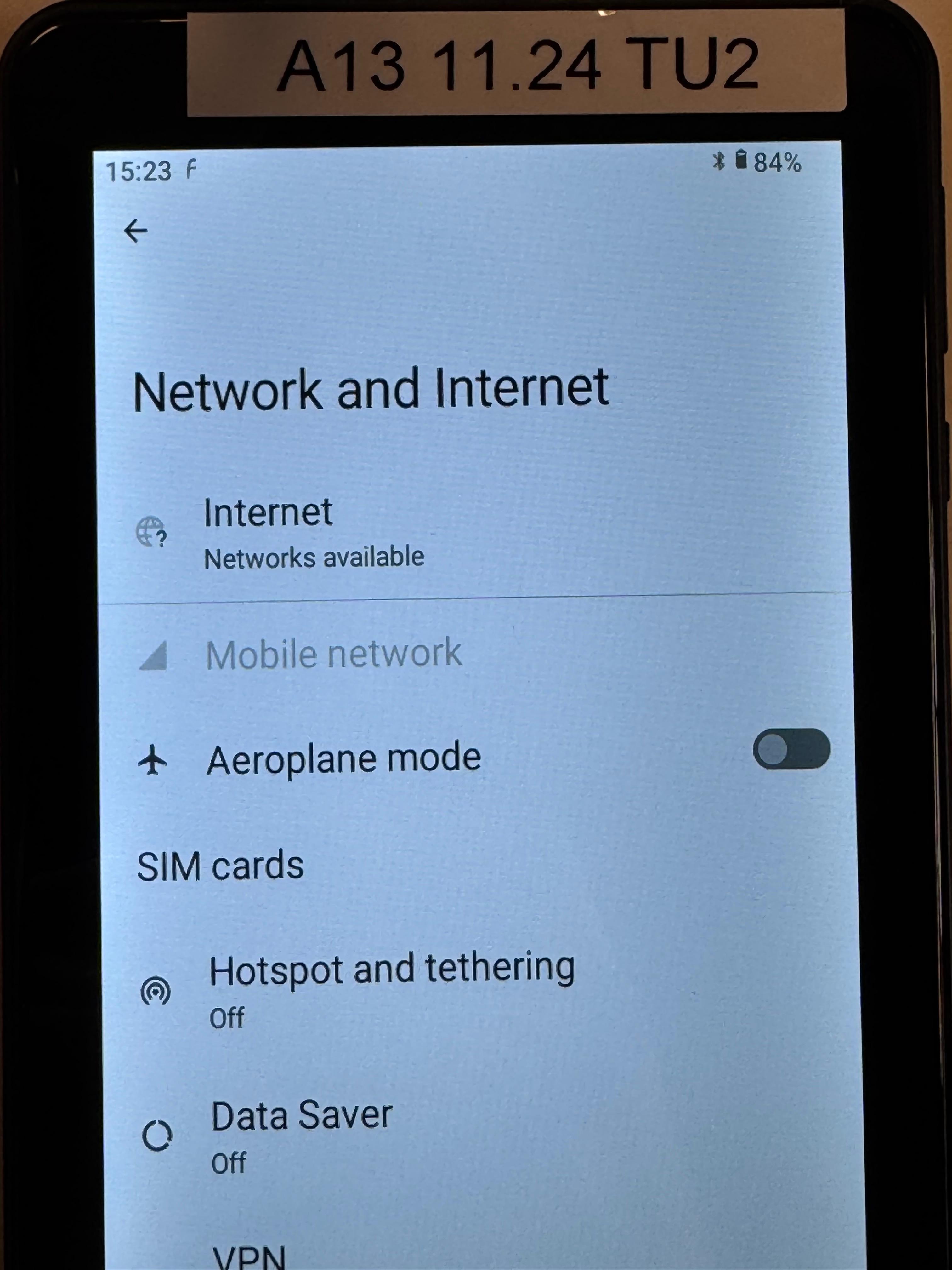

SIM Icons on the top right Triangle with solid colour indicating available signal Two small 4G to left of triangle R to right of triangle The 'Mobile Network' settings are accessible	SIM Icons on the top right Triangle with partial colour indicating available signal Small £G to left of triangle R to right of triangle The 'Mobile Network' settings are accessible	SIM Icons on the top right None The 'Mobile Network' settings are not accessible and greyed out

	Model 4G A12
SIM Active	SIM Inactive / Faulty	SIM Undetected / Absent
Click / Tap image to enlarge	Click / Tap image to enlarge	Click / Tap image to enlarge

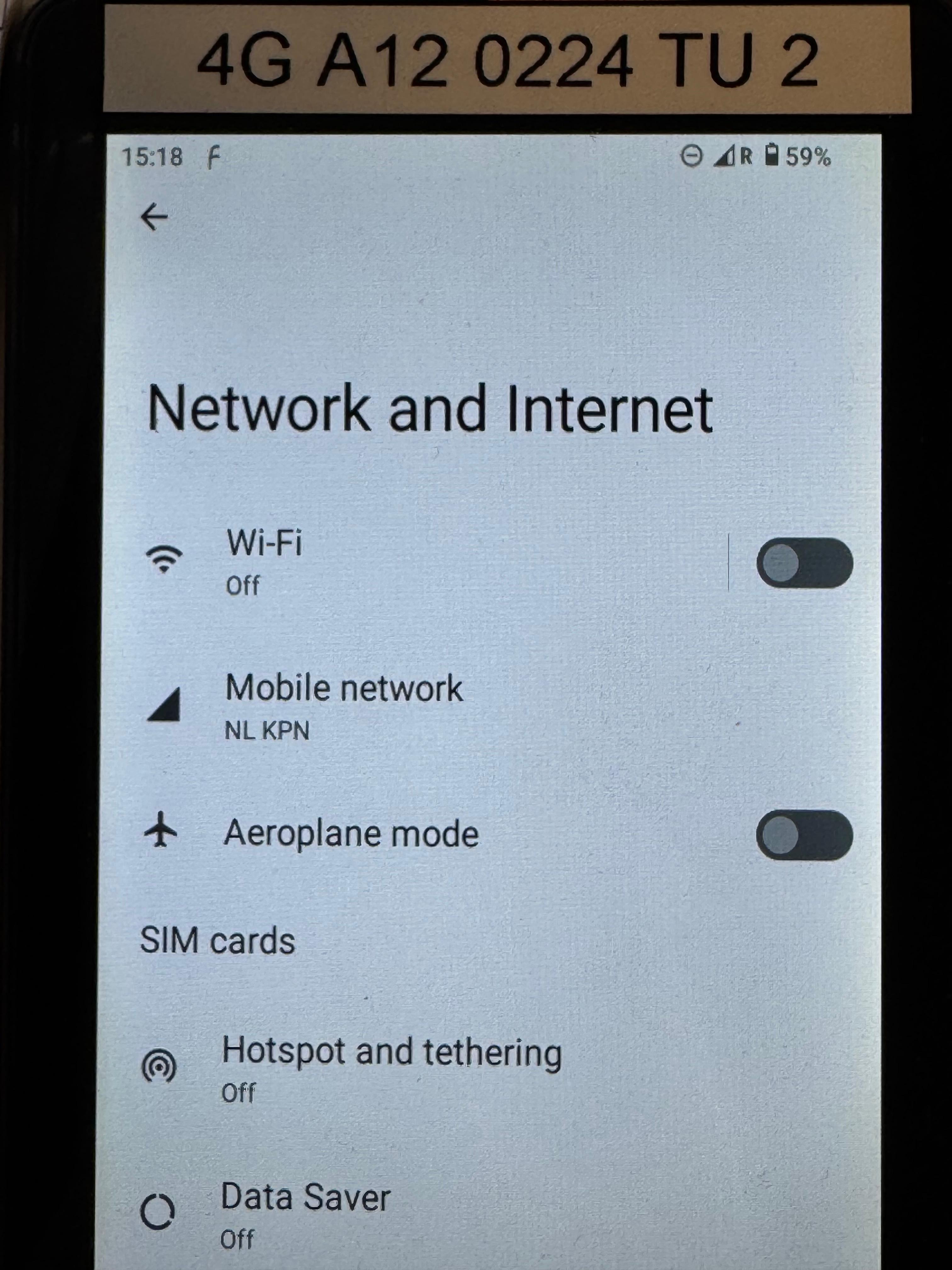

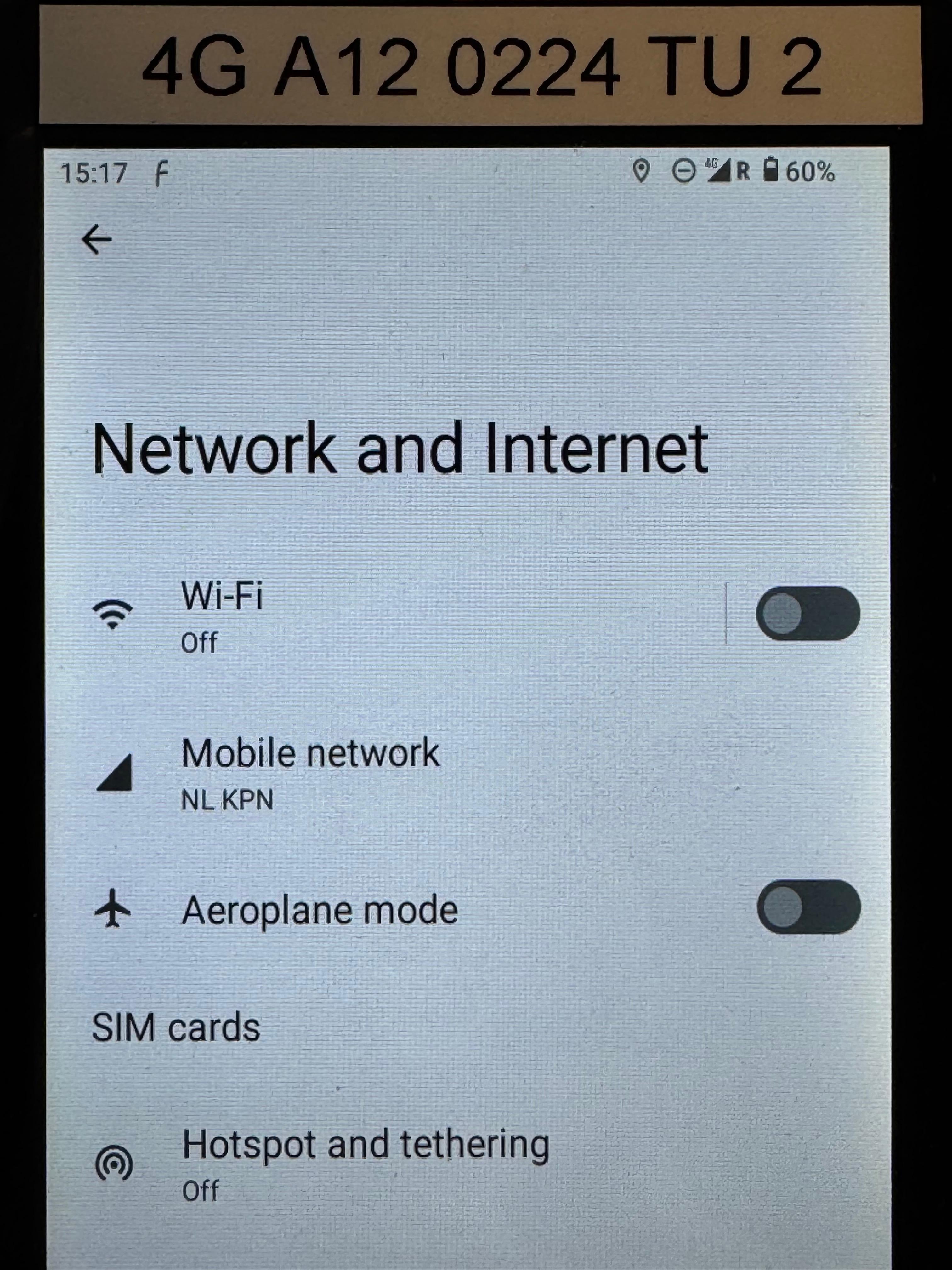

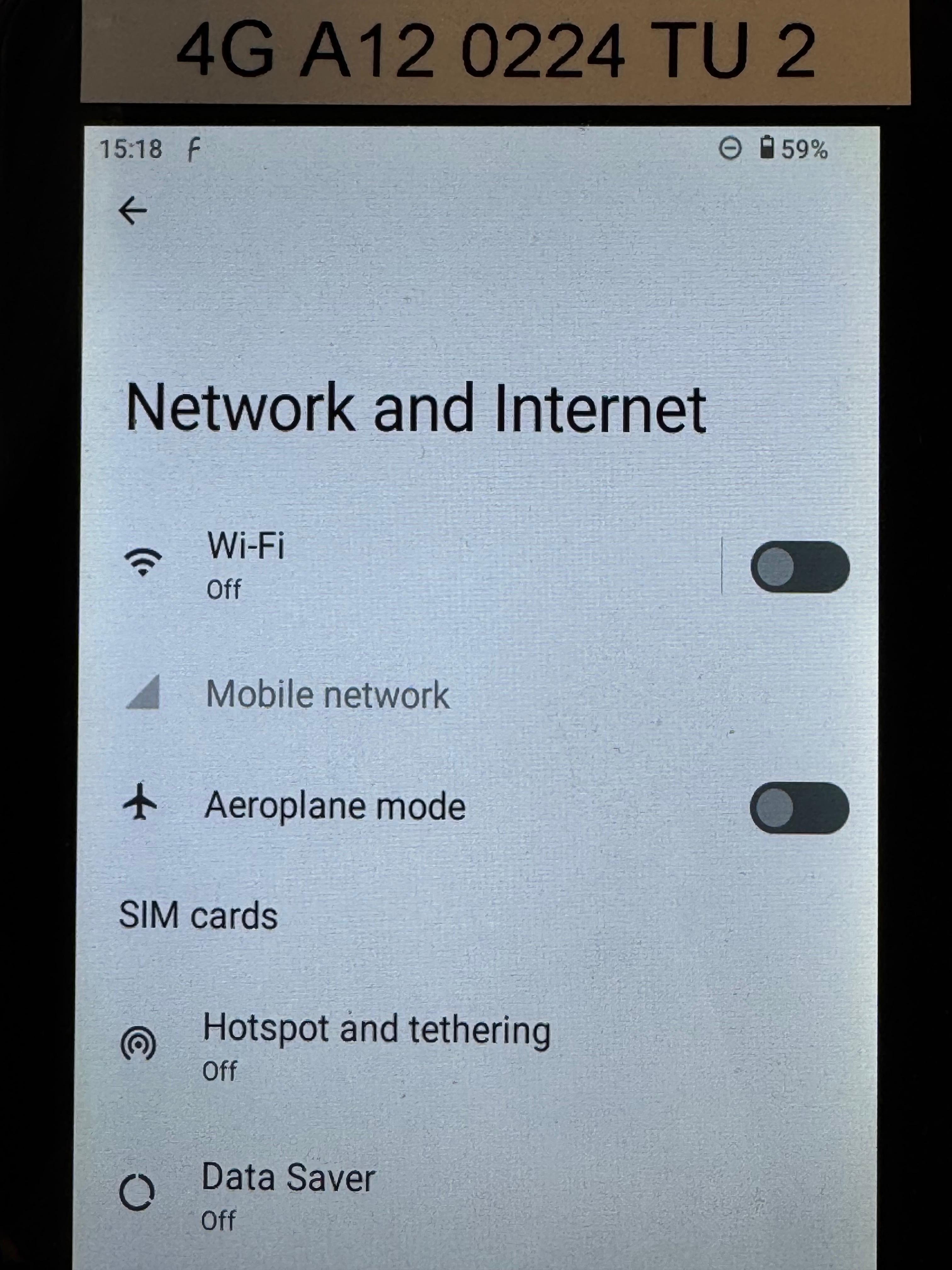

SIM Icons on the top right Triangle with solid colour indicating available signal One small 4G to left of triangle R to right of triangle The 'Mobile Network' settings are accessible	SIM Icons on the top right Triangle with partial colour indicating available signal No 4G/3G to left of triangle R to right of triangle The 'Mobile Network' settings are accessible	SIM Icons on the top right None The 'Mobile Network' settings are not accessible and greyed out

	Model 4G 205
SIM Active	SIM Inactive / Faulty	SIM Undetected / Absent
Click / Tap image to enlarge	Click / Tap image to enlarge	Click / Tap image to enlarge

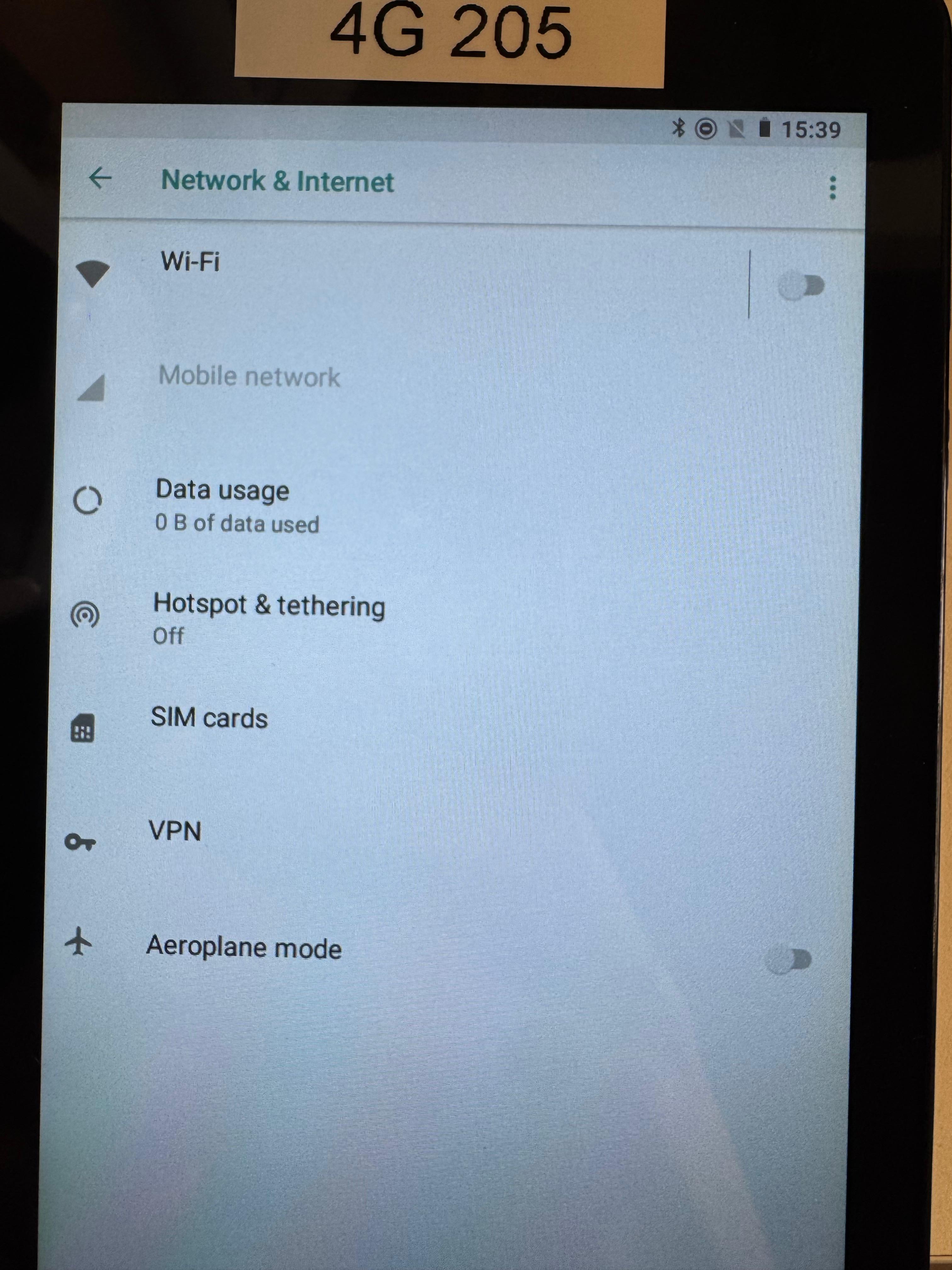

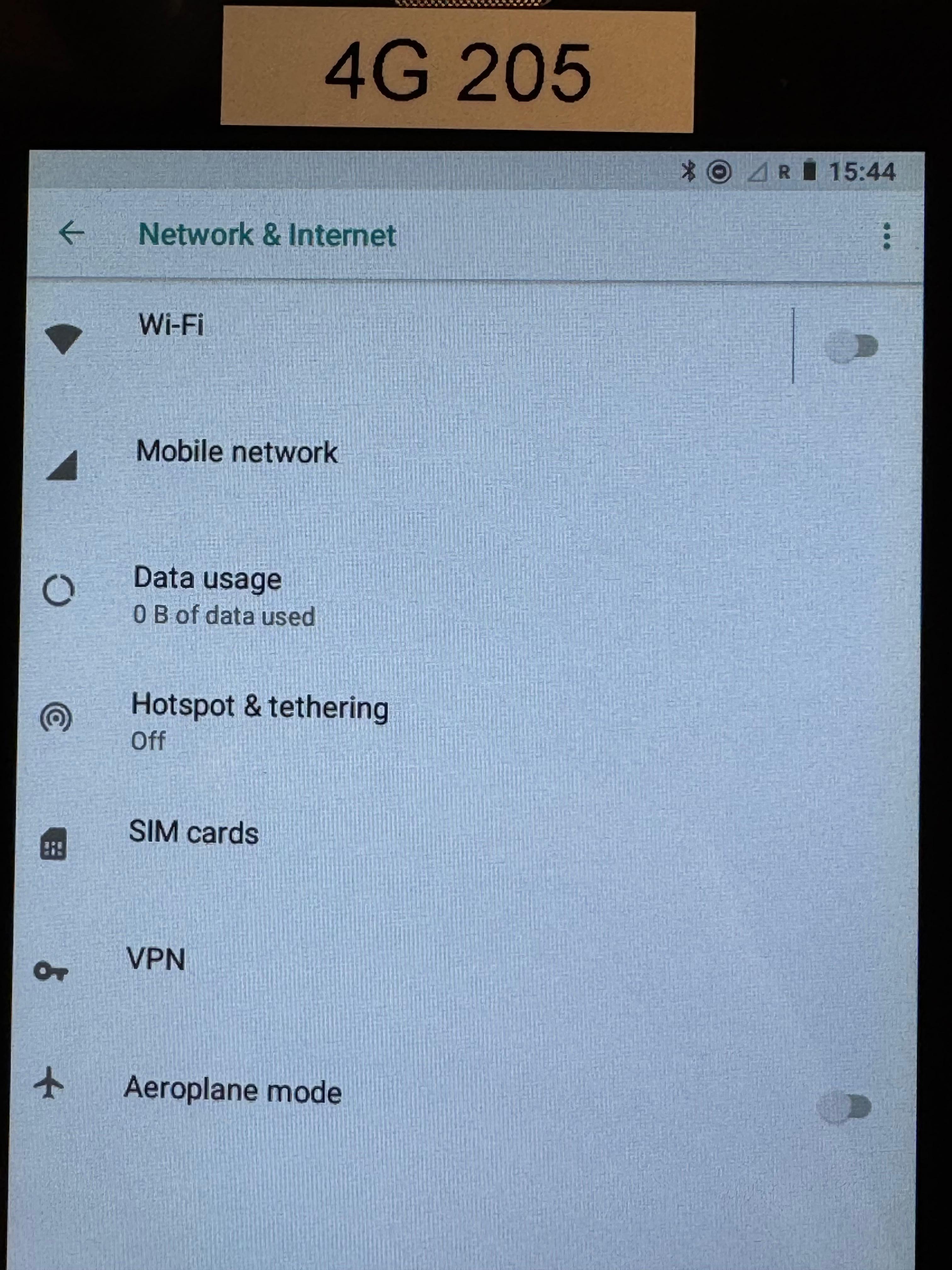

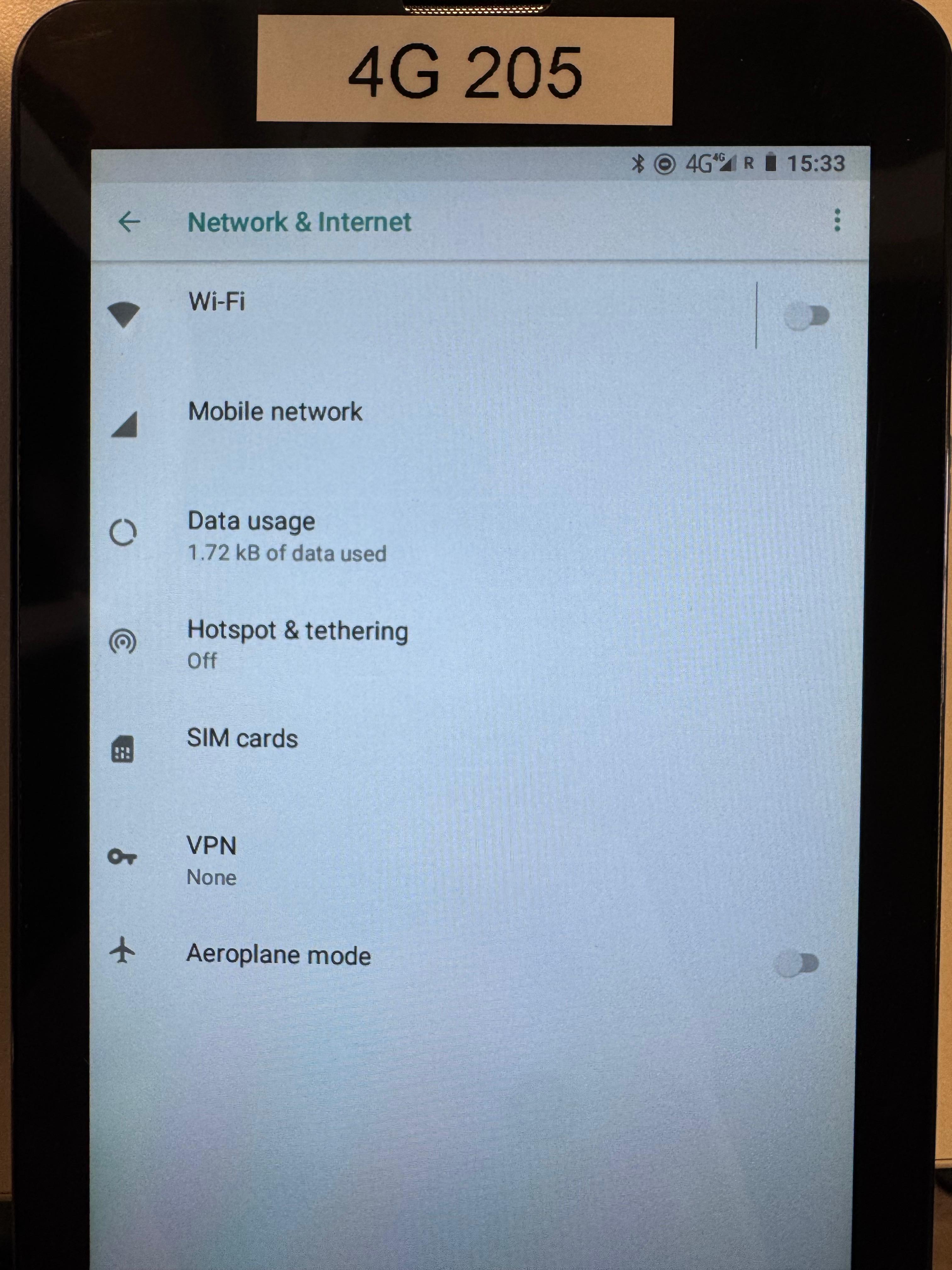

SIM Icons on the top right Triangle with solid colour indicating available signal Two small 4G to left of triangle R to right of triangle The 'Mobile Network' settings are accessible	SIM Icons on the top right Triangle with NO colour No 4G/3G to left of triangle R to right of triangle The 'Mobile Network' settings are accessible	SIM Icons on the top right None The 'Mobile Network' settings are not accessible and greyed out
